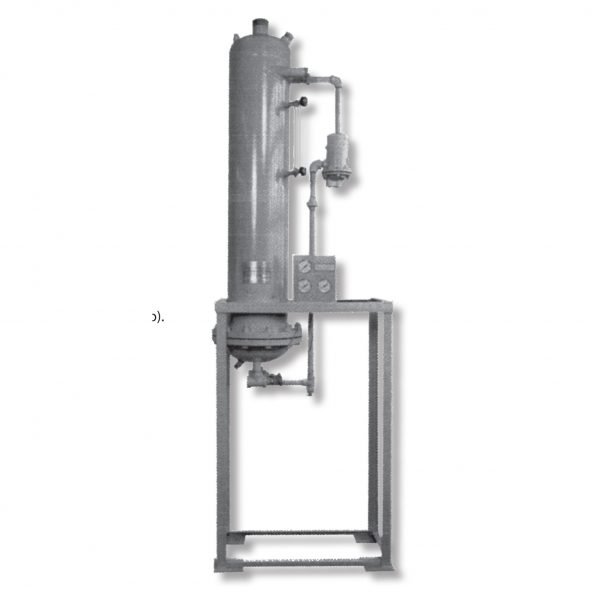

Flash Economizer

• Reduces dissolved solids from the top level of water in the boiler.
• Recovers heat from surface blowdown to heat boiler feed or make-up water.
• ASME Section VII code-stamped flash separator and coil.
• Separator is sized to accommodate a given percent surface blowdown/flow rate from boiler operating pressure to a given vent psig.
• Coil is sized to accommodate make-up flow rate at between 8 and 18 psig pressure drop.

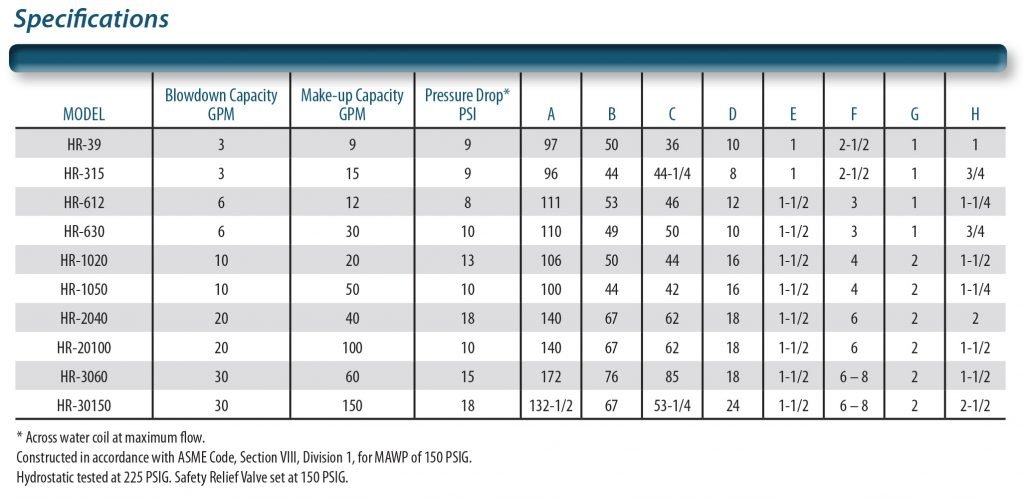

• Model Range: HR-39 (3 GPM blowdown/9 GPM make-up) through HR-30150 (30 GPM blowdown/150 GPM make-up).

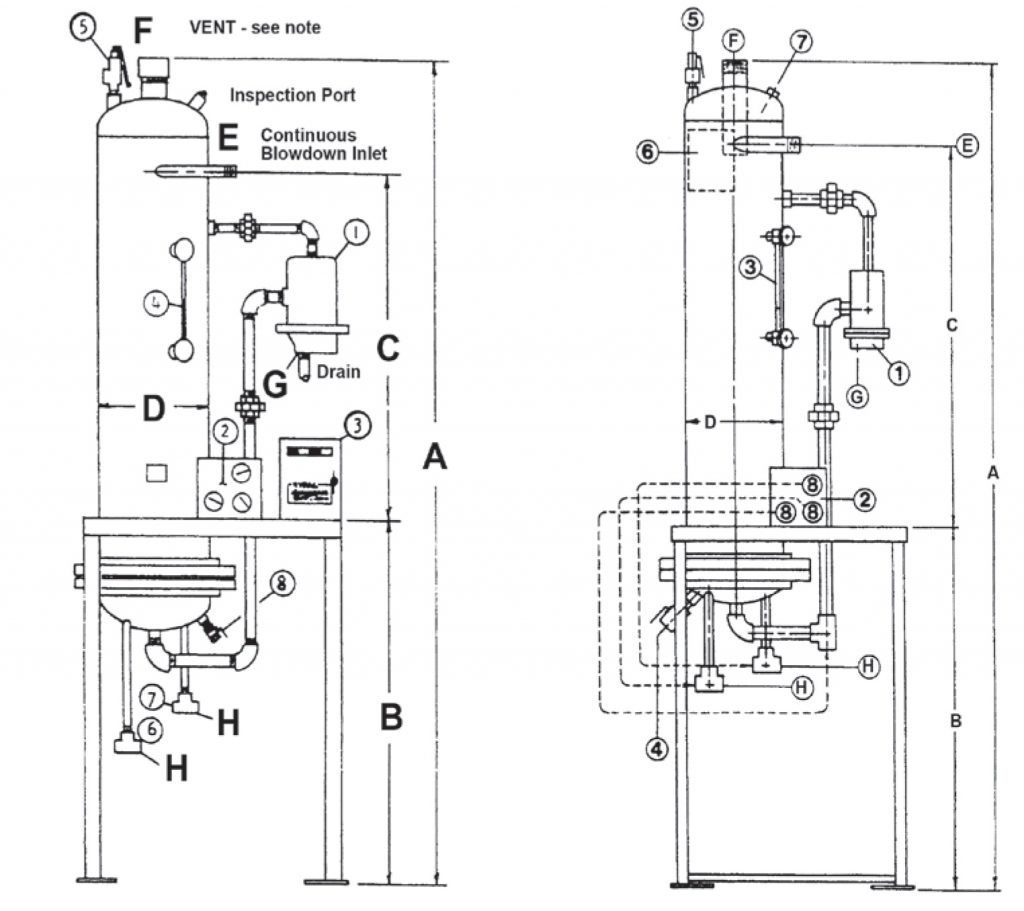

• Complete system configured to include: flash separator mounted above and flanged to a stainless steel or copper coil on stainless steel stand with trap, ball valve, gauge glass, safety valve, 3 thermometers and factory piping.
• Stainless steel striking plate standard.
• Flash separator flanged to coil section for ease or removal for cleaning.
• Openings to facilitate cleaning and inspection standard.
• Options include multiple boiler manifold and mounting of conductivity controller.
