8HE Series

8HE Series

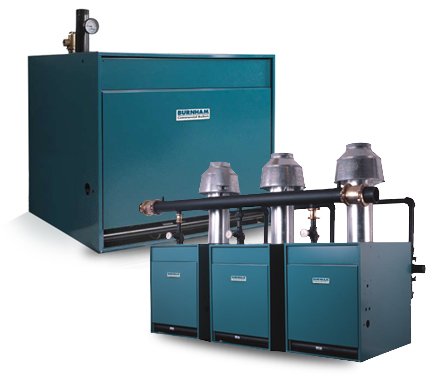

The Series 8HE boiler is ideal for large residential and light commercial water boiler applications. The compact design makes it easy to transport through a standard 36-inch doorway and the small footprint means it will fit into most boiler rooms. The 8HE has standard safety features such as a blocked vent switch and a flame rollout switch which automatically shuts down the boiler if the chimney or flue passages become restricted. Other manufacturers charge extra for these safety controls.



Fuel Natural Gas
Thermal Efficiency 80%-84%
Fuel Input 239-505 MBH
Venting Atmospheric
Water or Steam Water Only
Domestic Water Coil No
Heat Exchanger Cast Iron
Condensing No
Burners Aluminized Steel Tubes
Shipping Options Knockdown with Assembled Sections or Packaged
Warranty 10-Year**

**In the interest of continual improvements in products and performance, Burnham Commercial reserves the right to change specifications without notice. A complete copy of the boiler warranty, including details and limitations, can be found on our website www.burnhamcommercial.com.


  • Atmospheric Vent
  • Cast Iron Gas Fired Commercial Water Boiler
  • 239 – 505 MBH input
  • 80-84% Thermal Efficiency
  • 30 or 50 psi
  • Modular/Multiple Boiler Applications

Efficient Space Heating with the Modular/Multiple Boiler Concept

Modular/Multiple boiler systems put the efficiency, cost and service advantages of compact gas boilers to work in heating application where a single commercial boiler would not be efficient.

The systems connect any number of compact, self-contained gas boilers together and stage fire them to efficiently meet heating loads on demand.

Simple controls and simple design means the boiler will be easy to service and maintain.
